Your cooling tower water treatment report arrives once a month. You open it, scan for anything flagged out of range, don’t see any, and file it.
That’s what most facility managers do, and it misses most of what the report is telling you. A single month is a snapshot. Scale, corrosion, and biofilm don’t show up as one red number. They show up as a slow drift across several reports that each look “in range” on their own. By the time a value finally crosses a limit, the deposit is already on the tubes.
The fix isn’t more testing. It’s reading the reports you already get as a sequence. Here’s how.
A cooling tower water treatment report is the service record your water treatment provider leaves after each visit. It lists measured water chemistry (conductivity, cycles of concentration, pH, inhibitor and biocide residuals, and bacteria counts) against your program’s targets, along with the technician’s observations and any corrective actions taken.
Read one report and you learn whether the system was in range on the day of the visit. Read three or more together and you learn which direction it’s heading, which is the part that protects your equipment.
Most cooling tower water treatment reports track six to eight core parameters. Targets are set for your specific system, makeup water, and metallurgy, so always read results against the targets printed on your report. The ranges below are common reference points, not universal limits:
| Parameter | What it measures | Common reference point | Trend that needs action |
|---|---|---|---|
| Conductivity (µS/cm) | Dissolved solids in tower water | Setpoint = makeup conductivity × target cycles | Tower conductivity above setpoint, or rising while cycles stay flat |
| Cycles of concentration (CoC) | Tower water vs. makeup water concentration | Many systems run 2–4; 6+ is possible with good makeup water (U.S. DOE) | Outside your target band on two reports running |
| pH | Balance between scale and corrosion tendency | Program-specific; many alkaline programs run roughly 7.5–9.0 | Steady drift in one direction across three reports |
| Inhibitor residual (ppm) | Scale and corrosion inhibitor in the system | Program-specific target band | Below target two months running, or a sharp one-month drop |
| Oxidizing biocide residual | Free halogen available to kill bacteria | Program-specific target | Low or zero at sampling time; rising chemical use to hold it |
| Total aerobic bacteria (CFU/mL) | General biological load (dip slide or plate count) | ≤10,000 CFU/mL is commonly cited as good control (CTI) | A spike after months in range, or counts that never come down |
| Corrosion rate (mpy) | Metal loss on corrosion coupons, usually quarterly | Mild steel <3.0 mpy; copper <0.2 mpy | Rising rate from one coupon pull to the next, or pitting noted |
If your report doesn’t print a target next to each value, ask for one. A number without a target can’t be read as a trend.
Read each parameter for direction, not just position. Here’s what the common trends mean.
Cycles of concentration is the ratio of tower water conductivity to makeup water conductivity, and it is the single most important operating parameter on your report. Read conductivity and cycles together:
For a deeper look at choosing the right target, see our breakdown of the cycles of concentration mistake that costs facilities money.
pH is the balance point between scale and corrosion. A reading that drifts lower over several months points to acid overfeed or carbon dioxide pickup. One that drifts higher usually points to alkalinity building with cycles. Neither corrects itself. Higher pH also weakens chlorine-based biocides, so a rising pH trend often shows up later as a rising bacteria trend.
Inhibitor residual is the parameter most often overlooked, and it’s the chemistry actually protecting your equipment. A residual that sits at the low end of target every month means the feed rate needs adjustment. A sharp single-month drop means something changed: a feed pump failure, an empty drum, a leak or unplanned drain, or a surge in makeup water.
Bacteria count is your biological health indicator, and the pattern matters more than the number. A count that spikes after months in range tells you something changed. A count that stays elevated tells you the baseline biocide program isn’t in control. Read it next to the biocide residual: low residual plus rising bacteria is a feed problem, while normal residual plus rising bacteria points to biofilm or contamination.
Total bacteria is not a Legionella test. A dip slide or plate count measures general bacteria. It doesn’t detect Legionella, so a clean total bacteria result doesn’t confirm Legionella control. Legionella needs its own testing, on the schedule set by your water management plan.
Corrosion coupons are usually pulled quarterly, so they lag the monthly chemistry. A rising rate confirms what pH and inhibitor trends were already hinting at. For how to read every field on a coupon report, see our corrosion coupon report guide.
Knowing what each trend means is half the job. The other half is a routine for spotting them.
Use the same seven steps every month:
Ten minutes a month on this routine catches most problems one or two visits earlier than scanning for red flags would.

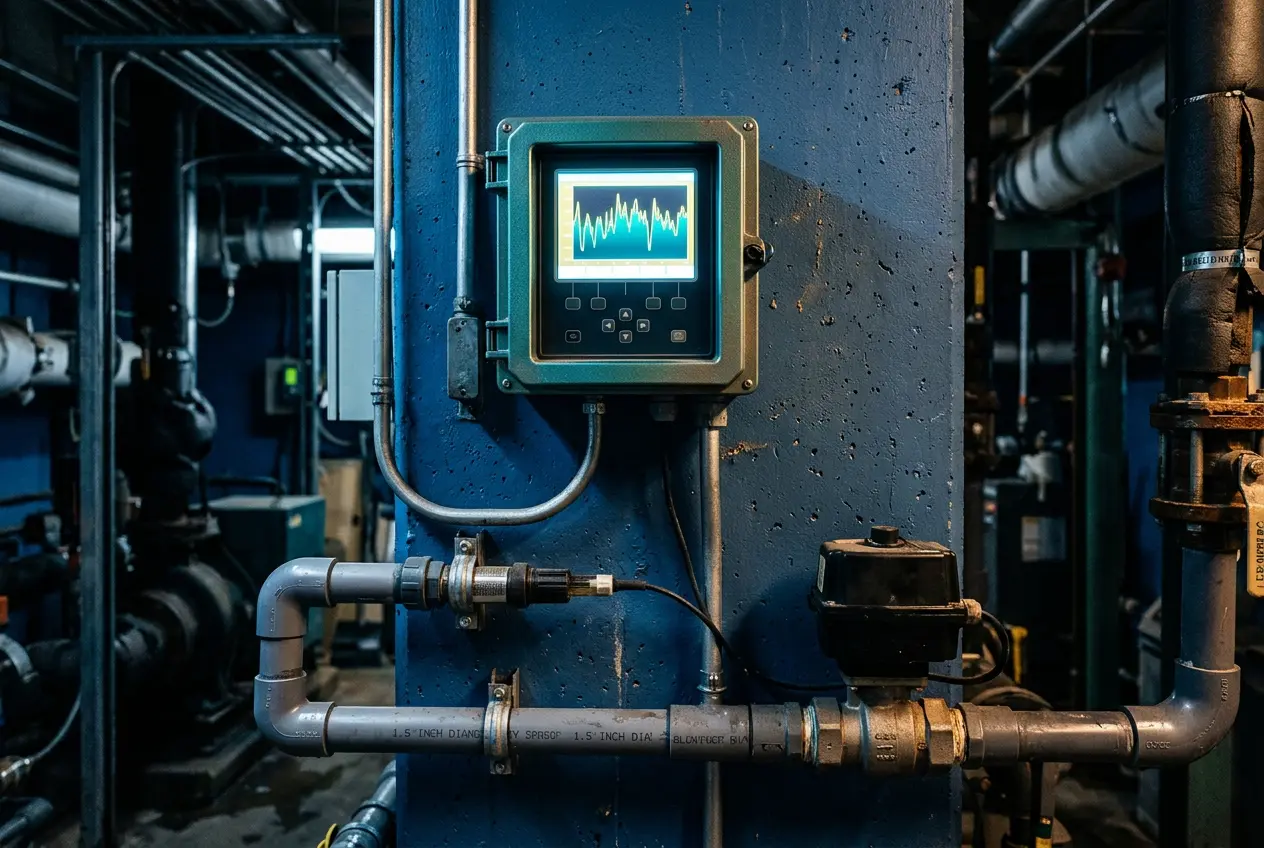

Digital remote monitoring tracks conductivity, pH, and flow continuously between service visits and alerts you when a parameter starts to drift.
See How Remote Monitoring Works →Your report should answer these questions. If it doesn’t, ask your provider directly:
Red flags on a report. No targets printed next to results. No technician comments. Readings that are identical month after month. Recommendations that repeat without ever being closed out. Any of these means the report is documenting a visit, not managing a system.
A good provider will welcome these questions, because they make the program easier to manage.
A monthly report tells you what happened. Real-time monitoring tells you what’s happening now. Digital remote monitoring logs conductivity, pH, and flow continuously, so a stuck blowdown valve or an empty inhibitor drum shows up in hours instead of at the next visit.
Paired with automated controllers, it also adjusts blowdown and chemical feed to actual load rather than a fixed schedule. Your monthly cooling tower service report then becomes a review of a well-documented month instead of a single data point. For towers with heavy airborne debris, side stream filtration keeps suspended solids from skewing results and fouling heat transfer surfaces.
Whether you add monitoring or not, the principle is the same: the earlier you see the drift, the cheaper the fix.
Bring your recent water treatment reports to a free on-site water analysis. We'll walk your system, test your water, and show you which trends need attention. No obligation.
Schedule Your Free Water Analysis →Many cooling towers operate at two to four cycles of concentration, and six or more is possible with good makeup water and treatment, according to the U.S. Department of Energy. The right target depends on your makeup water hardness, silica, alkalinity, and metallurgy, so it should be set with your water treatment provider.
Cooling tower pH targets are program-specific. Many alkaline treatment programs run roughly between 7.5 and 9.0. What matters most on a monthly report is the trend: a steady drift in either direction across several reports signals a scale or corrosion risk that won’t correct itself.
A total aerobic bacteria count of 10,000 CFU/mL or less is commonly cited as good control, including by the Cooling Technology Institute. A sudden spike after months in range deserves attention even below that level. Total bacteria tests do not detect Legionella, which requires separate testing.
Most programs have a service technician test key parameters at least monthly, with automated controllers measuring conductivity and pH continuously. Corrosion coupons are typically pulled quarterly. Legionella sampling follows your water management plan and any local rules; New York City, for example, requires monthly Legionella sampling.
Commonly used guidelines treat mild steel corrosion rates below 3.0 mils per year (mpy) and copper rates below 0.2 mpy as acceptable. A rising rate between coupon pulls matters as much as the absolute number, and pitting is a concern even when the overall rate looks acceptable.
